Inverted Wire Drawing Machine Automatic Production Line

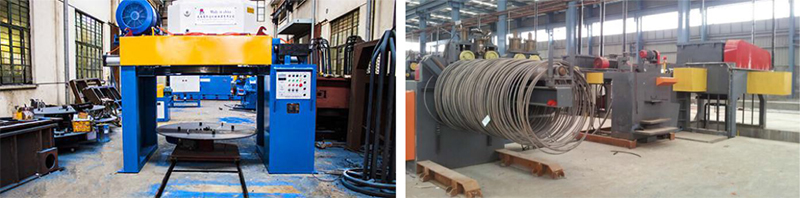

Automatic uncoiling machine+ automatic cutting wire machine +inverted vertical wire drawing machine that we designed and made on the basis of overseas advanced technology is a special production line of a heavy coil feeding wire. It’s easy to operate with high safety.The unique high-performance humanized design is the first selection device of drawing high middle low carbon wire. It is widely used in metal products, bolt strand, thick diameter wire drawing industry, favored by industry experts, visionary entrepreneurs

Feeding wire adopts programmable frequency control, make that linkage stability between uncoiler and wire drawing machine is high. moving and high stability. For the safety design of the equipment, use several safety protection devices, to make the device is able to run more stable, more safe and reliable.Wire feeding process is fully automatic without manual operation.Cutting mechanism control is same as the wire feeding machine. Transmission are controlled by the hydraulic. It is easy and flexible to operate. Cutting process is full automatic ,cutting effect is nice.Inverted wire drawing machine control is safe operation mode. Emergency stop, disordered wire stop, broken wire stop and electric fault stop, braking system are safe and reliable.Easy and flexible operation, humanized design makes the whole line process more convenient and reliable operation, the whole line main electrical components, hydraulic parts,all adopt the international well-known brand.

倒立式拉丝机全自动生产线技术参数

自动送线部分 Auto feeding wire part		自动切削部分 Auto cutting part		倒立式拉丝机部分 Inverted wire drawing machine part
项目 Item	参数 Parameter	项目 Item	参数 Parameter	项目 Item	参数 Parameter
主动辊轮直径 Driving roller diameter	Φ250mm	切削形式 Cutting form	内置式旋转切削 Built-in rotary cutting	卷筒直径 Capstan diameter	Φ1200 一 1400mm
转速 Rotating speed	≤ 50m/min	切削流程 Cutting process	自动 Auto	******进线直径 Max inlet wire diameter	042mm
电机功率 Motor power	5.5 - 11kw	电机功率 Motor power	0.75-1.1kw	进线强度 Inlet wire strength	≤ 500Mpa
送线形式 Pay-off Form	单动、联动 Single action，linkage	整机移动形式 Overall moving form	液压、手、自动控制 Hydraulic，hand Auto control	压缩率 Compression rate	25%
压轮形式 Pinch roller form	可调液压控制 Adjustable hydraulic control	变速箱 Gear box	摆线针轮 Cycloidal pinwheel	拉拔速度 Drawing speed	0.5 一 2.5m/s
变速箱 Gear Box	双联齿轮传动 Double gear drive	切削直径 Cutting diameter	Φ25 一 42mm	电机功率 Motor power	75 _132kw
送线直径 Feeding wire diameter	Φ25 - 42mm	切削材料强度 Cutting material strength	≤500Mpa	控制方式 Control form	交流变频调速 AC frequency control
材料强度 Inlet wire strength	≤ 500Mpa	控制方式 Control form	交流变频调速 AC frequency control	减速箱 Reduction gearbox	硬齿面齿轮传动 Hardened gear drive
控制方式 Control Form	交流变频调速 AC frequency control
